EOS Bi-O-Thermat W & Econ H4 | Sauna Heater Set
Preis auf Anfrage
Manufacturer Information (GPSR)
EOS Saunatechnik GmbH
Schneiderstriesch 1
35759 Driedorf
Deutschland
Tel: +49 2775 82 0
info@eos-sauna.de
Sauna Heater Set | Combi Sauna Heater Bi-O-Thermat W & Sauna Control Unit Econ H4
Recommended heater output:
7.5 kW from 7 to 10 m³
9.0 kW from 9 to 14 m³
Today a classic Finnish sauna, tomorrow a cozy warm air bath or soft steam bath, and the day after an invigorating herbal steam bath. With this sauna heater set, you get all the options for a varied sauna experience!
Scope of delivery:
1. Part: Combi sauna heater EOS Bi-O-Thermat W
2. Part: Digital sauna control unit EOS Econ H4
3. Part: Digital temperature sensor including temperature limiter
4. Part: 2.0m sensor cable in red-white (temperature sensor)
5. Part: 2.0m silicone cable (heater-control unit)
6. Part: 2.0m silicone cable (heater-evaporator control unit)
7. Part: 18 kg Olivine - Diabase - Sauna stones
Combi sauna heater Bi-O Thermat W with built-in evaporator for private sauna cabins.
The Bi-O Mat is a modern sauna heater with evaporator for flexible climate settings. Choose between a dry Finnish sauna, a mild steam sauna, or a herbal bath.
The evaporator is located on the right side of the heater with a 5 liter capacity, manual filling. A herbal bowl for herbs, essential oils and essences is placed on the heater above the evaporator.
Stone basket with approx. 18 kg stone volume.
Enjoy the various possibilities of sauna use with the Bio-Mat W sauna heater, with powerful sauna infusions and an optimized
ratio of radiant heat and convection through the adapted stone quantity.
Technical description :
- Combi wall-mounted heater consisting of a sauna heater with a laterally arranged evaporator tray.
- Sauna heater output: 7.5 kW or 9 kW
- plus evaporator output: 1.5 kW
- Wall-mounted design
- Double-walled heater construction completely made of stainless steel.
- Laterally integrated evaporator tray made of aluminum.
- Evaporator tray volume 5 liters
- Stainless steel herbal bowl mounted on cover grid for herbs, essential oils, and essences.
- Acoustic water shortage alert
- incl. dry-run protection and water shortage buzzer.
- Base plate as drip pan construction
- incl. 18 kg sauna stones
- Connection: 400V 3N AC
- External dimensions: HWD = 580 x 450 x 380 mm
* Sauna technology made in Germany, EOS Saunatechnik GmbH
* Tested safety: VDE

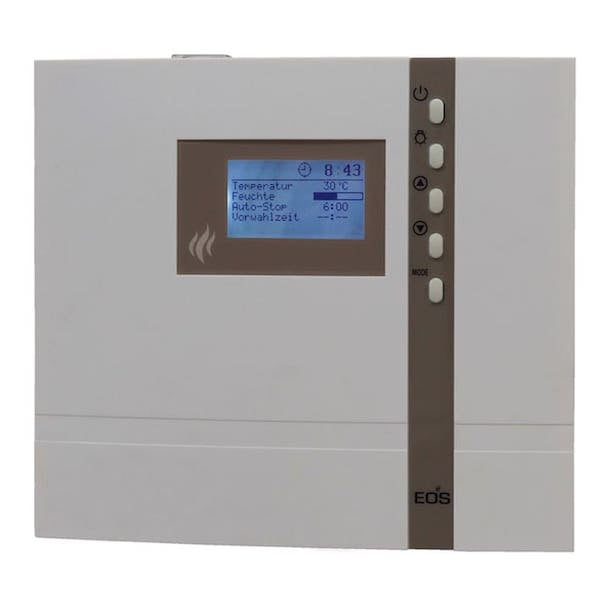

Sauna control unit EOS Econ H4
(Finnish + Bi-O) for demanding private and commercial users
Sauna control unit for combi saunas, Finnish (dry) sauna, and saunas with humid operation, featuring multilingual menu guidance and extensive functions. Suitable for modern private and commercial sauna facilities.
- modern, flat housing for surface mounting or partially recessed mounting
- Connection is at the rear
- Multi-line LCD display shows all parameters at a glance
Switching capacity: 9 kW, expandable with a power switching device. Temperature sensor with 2 m cable included in delivery.
Additionally:
- With dimmable cabin light (10-stage, automatic detection of inductive and capacitive loads)
- With output for cabin fan
- With holiday home mode (restricted access)
- 4 user profiles
Optional accessories:
- Remote start bus module: This module allows the sauna to be switched on/off remotely up to 100 m away at the touch of a button. Also suitable for Emotec / EmoTouch series devices.
- Bench sensor: Enables optimized temperature control in larger sauna facilities or with complex layouts.
- F2 humidity sensor: Enables precise humidity control based on relative humidity.
Technical Details:
- Digital display of time, pre-set time and pre-selectable temperature
- Heating time limit: 6 h, 12 h or none
- Switching capacity 9 kW, in conjunction with power switching device up to 36 kW
- Evaporator power: 3 kW
- Temperature control from 30°C to 70°C with
- Steam and 70°C - 110°C for the classic dry sauna
- 24 h real-time and pre-selection clock
- Menu guidance in 12 languages
- Optional connection for bench sensor
- Optional connection for humidity sensor
- Temperature pre-selection
- Output for fan. Fan function adjustable
- Humidity cycle pre-selection
- Holiday home mode
- Remote start (optional modules)
- Water shortage detection
- Reheating function
- Fault message
- Light on/off switch, light 100% dimmable
- Safety temperature limiter 139°C.
- incl. silicone cable for temperature sensor approx. 1.7 m
- incl. KTY temperature sensor
- Dimensions: 220 x 250 x 58 mm.
- Connection: 400 V 3N AC 50 Hz.
* Sauna technology made in Germany, EOS Saunatechnik GmbH
* Tested safety: VDE
Silicone connection cable, silicone cable, Ø 5 x 2.5 mm²
Connection cable for all electric sauna heaters from 4.5 to 9 kW.
For the connection between the sauna control unit and sauna heaters.
- Connection: 400 V 3N AC
- Protection: 3 x 16 A
- Temperature range: -50 to +180°C
Silicone connection cable, silicone cable, Ø 5 x 1.5 mm²
Connection cable for the connection between the evaporator and the sauna control unit.
- Connection: 400 V 3N
- AC Protection: 3 x 16 A
- Temperature range: -50 to +180°C
Sauna stones
Special infusion stones: Original Olivine-Diabase-Sauna natural stones.
- Weight: approx. 18 kg unit
